Beamsplitter Cubes

Beamsplitter Cubes

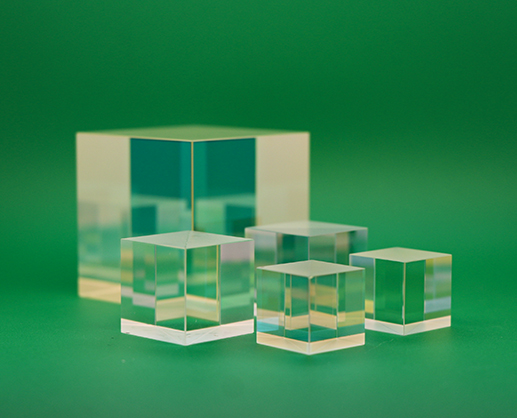

The beamsplitter cube consists of two right-angle prisms bonded together by adhesive or optical contact, with a beamsplitting film (e.g., a multilayer dielectric film) plated at the interface of the beveled edges.24 Compared to flat plate beamsplitters, the cube design avoids optical axis shifting and ghosting phenomena, and has better mechanical stability, which is mainly used for decomposing composite light into monochromatic light in beamsplitters, for beam shaping in laser systems, or for optical path correction in microscopes, telescopes, and other optical instruments. It is mainly used in beam splitter to decompose compound light into monochromatic light, laser system for beam shaping or optical path correction of optical fiber communication, microscope, telescope and other optical instruments. Cube beamsplitters are durable, easy-to-install beamsplitters with equal optical path lengths.

CLZ Optical Co., Ltd. offers an online inventory catalog that includes a range of cube beamsplitters. CLZ Optical Co., Ltd.'s cube beamsplitters offer optimal performance in the visible or infrared (IR) spectrum, with anti-reflective coating options designed for common laser wavelengths or wavelength ranges.


Please contact our sales team.

For a quote on your custom requirements please send us your drawing or specification.

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Type No. Data sheet Dimensions (mm)Wavelength (nm)Reflection/Transmission Ratio
BS-127127127 - 12.7x12.7x12.7 400-700nm 50/50

Now Shopping by

Dimensions (mm)

5 51

Wavelength (nm)

400-680nm
400-700nm
620-1000nm
700-1100nm
900-1200nm
1100-1600nm
1500-2000nm

Type

Non-Polarizing Beamsplitter Cubes
Polarizing Beamsplitter Cubes

Reflection/Transmission Ratio

50/50
30/70
70/30
10/90
