Features and Applications of Meniscus Lenses

Meniscus lenses are a type of optical lens with a convex-concave shape. They are made from a single piece of material, and the curvature of the two surfaces can be the same or different. Meniscus lenses are used in a wide range of applications due to their unique optical properties. In this article, we will discuss the features and applications of meniscus lenses in more detail.

Features of Meniscus Lenses:

Bi-convex and Bi-concave Surfaces

Meniscus lenses have a convex surface on one side and a concave surface on the other side, which makes them suitable for correcting optical aberrations in imaging systems.

Positive or Negative Focal Length

Depending on the curvature of the surfaces, meniscus lenses can have a positive or negative focal length. A positive focal length means that the lens converges the light rays and forms a real image, while a negative focal length means that the lens diverges the light rays and forms a virtual image.

High Optical Quality

Meniscus lenses are made from high-quality optical glass or plastic materials, which ensures a high degree of transparency, uniformity, and low scattering.

Compact and Lightweight

Meniscus lenses have a small size and low weight, making them suitable for use in portable devices and applications where space is limited.

Customizable

Meniscus lenses can be customized to meet specific optical requirements by adjusting the curvature, thickness, and material of the lens.

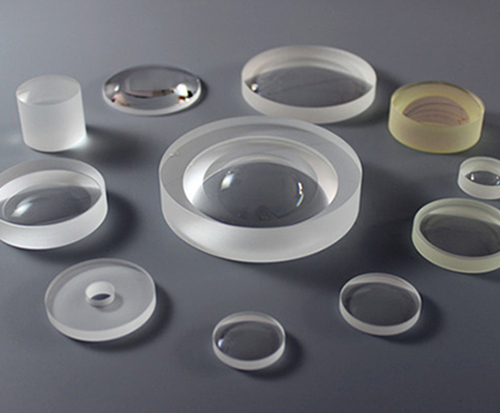

UV grade Fused Silica meniscus lenses from CLZ Optics

Applications of Meniscus Lenses:

Imaging Systems

Meniscus lenses are widely used in imaging systems, such as cameras, telescopes, and microscopes, to correct optical aberrations, such as spherical aberration, coma, and astigmatism. Meniscus lenses can also be used as magnifiers to increase the size of an image.

Laser Applications

Meniscus lenses are used in laser applications, such as laser collimation, beam shaping, and focusing. The meniscus lens can focus the laser beam to a small spot size or collimate the laser beam to a parallel beam.

Medical Devices

Meniscus lenses are used in medical devices, such as endoscopes and dental loupes, to provide clear and magnified images of the internal body parts. Meniscus lenses can also be used in surgical microscopes to provide a high-resolution image of the surgical field.

Optical Communication

Meniscus lenses are used in optical communication systems, such as fiber-optic communication, to couple the light from the source to the fiber and vice versa. Meniscus lenses can also be used in optical sensors to detect changes in the optical signal.

Lighting Systems

Meniscus lenses are used in lighting systems, such as projectors and spotlights, to control the light distribution and focus the light onto a specific area. Meniscus lenses can also be used in LED lighting systems to increase the efficiency of the light output.

Magnifying Glasses

Meniscus lenses are used as magnifying glasses for reading small print, examining small objects, and for hobby use, such as stamp collecting or jewelry making.

Astronomical Telescopes

Meniscus lenses are used in astronomical telescopes to reduce chromatic aberration, which can cause color fringing in the images. Meniscus lenses can also be used to increase the focal length of the telescope.

Virtual Reality

Meniscus lenses are used in virtual reality headsets to create a virtual image that appears at a distance. Meniscus lenses are also used in augmented reality applications to overlay digital information onto the real world.
