Non-Polarizing Beamsplitter Cubes

Non-Polarizing Beamsplitter Cubes

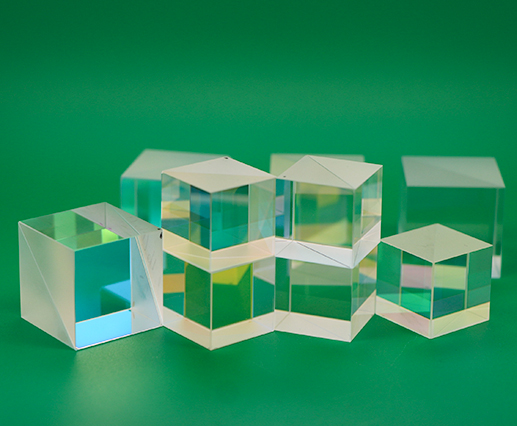

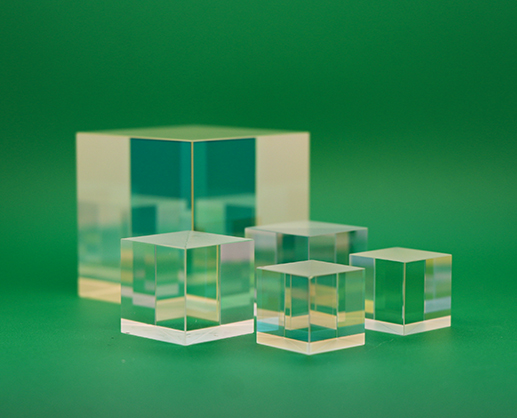

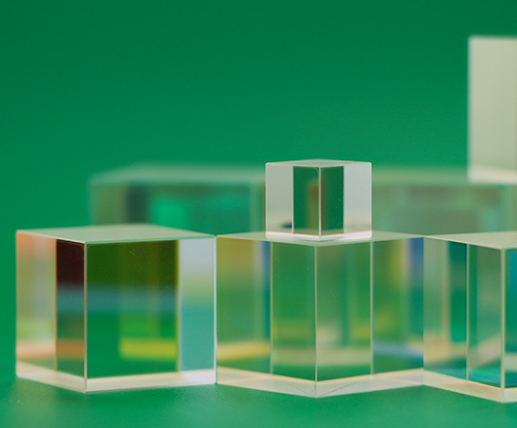

Non-Polaring Beamsplitter cube is made of two right-angle prisms bonded into a cube structure by adhesive, and one of the prisms is coated with a non-polarized beamsplitting film (e.g., multilayer dielectric film) on its beveled side to realize that regardless of whether the incident light is natural, linearly or circularly polarized, it can be divided into reflecting and transmitting beams of light in fixed proportions, and the original state of polarization can be maintained. All sides of the cube can be used as incident surfaces, but the best performance is achieved by incident light from the right-angled side of the coated prism.

Unpolarized cube beamsplitters are generally used in laser systems, machine vision, fiber optic communications, and other applications.

CLZ Optical Co., Ltd. offers an online stock product catalog, including a range of Cube Beamsplitters. CLZ Optical Co., Ltd.'s Cube Beamsplitters are designed for optimal performance in the visible or infrared (IR) spectrum, with anti-reflection coating options designed for common laser wavelengths or wavelength ranges.


Please contact our sales team.

For a quote on your custom requirements please send us your drawing or specification.

Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities

Type No. Data sheet Dimensions (mm)Wavelength (nm)Reflection/Transmission Ratio
BS-127127127 - 12.7x12.7x12.7 400-700nm 50/50

Now Shopping by

Dimensions (mm)

5 51

Wavelength (nm)

400-680nm
400-700nm
620-1000nm
700-1100nm
900-1200nm
1100-1600nm
1500-2000nm

Type

Non-Polarizing Beamsplitter Cubes
Polarizing Beamsplitter Cubes

Reflection/Transmission Ratio

50/50
30/70
70/30
10/90
