Plano-Concave Lenses
A plano-concave lens is a versatile optical element that has a negative focal length. Unlike other lenses that converge light rays and focus them to a single point, plano-concave lenses diverge light rays, dispersing them in different directions. This characteristic of plano-concave lenses allows them to be used in beam expanders, projection systems, and more.
In addition to beam expanders and projection systems, the plano-concave lens offers a range of other applications. In optical instruments, it is often used to collimate light sources. Collimation is the process of aligning parallel rays of light. By employing a flat-concave lens, it diverges the incident light to produce a parallel output that enables precise measurements in devices such as spectrometers, optical sensors, and astronomical telescopes.
CLZ Optical Co., Ltd. stocks plano-concave lenses ranging from 10mm to 250mm in diameter with a full range of focal lengths to meet your needs. We can also customize optical components to meet your requirements using a variety of optical materials, such as optical glass, fused silica, silicon.
CUSTOM OPTIONS >
CUSTOM COATING OPTIONS >
EDGING & BLACKEN OPTION >
See Also >

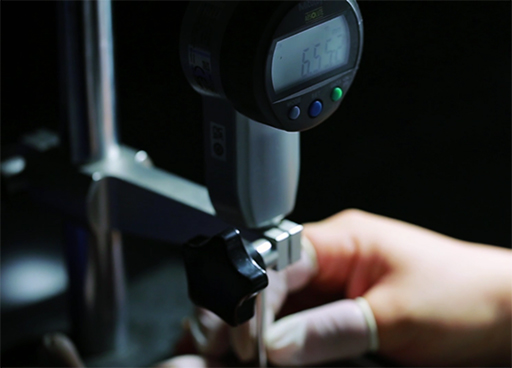

Materials: Optical glass, Fused Silica and Silicon

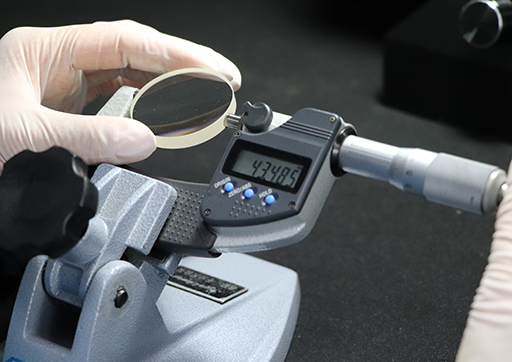

Dimensions: Diameters 10mm to 250mm
Edge Finish: Blackened
Surfaces: 80-50 to 20-10 Scratch dig

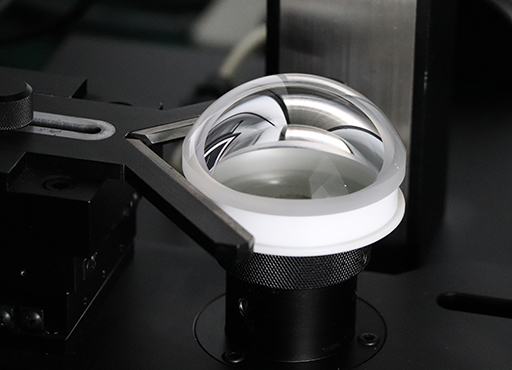

Centration: To 30 seconds

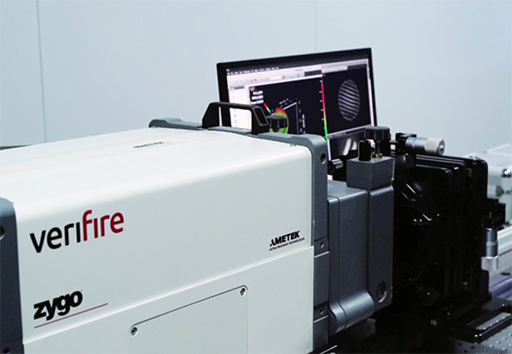

Irregularity: To 1/10 waves

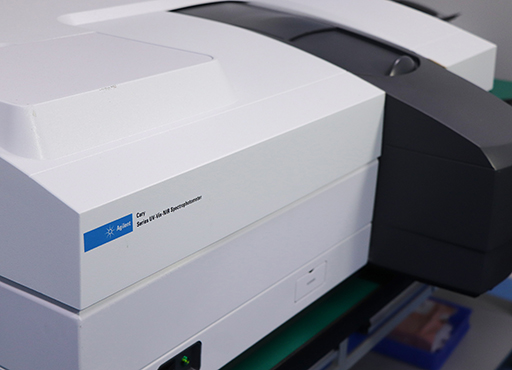

Coating Options: Single & multi layer AR coatings
-Single layer magnesium fluoride coating
-Broadband anti-reflection (BBAR)
-Single wavelength AR coating (V-coating)
-Dual-band AR coating (W-coating)
We can modifying diameter of lenses and blacking edge in stock optics to meet your requriments.
This can achieve:
The stock optics diameter from large to small and tighter diameter tolerance.
Coated Area is a continuous coating extending to the edges of the optical component. (Edge after coating)
Edge-blackened lenses, or inked lenses, minimize the stray light within an optical system.
Please contact us for discount pricing for stock parts over 10+ and volume/OEM quantities
| Type No. | Data sheet | Material | Diameter (mm) | Coating | EFL (mm) | CT (mm) | |
|---|---|---|---|---|---|---|---|
| L-PC1011000075 | PDF > | UVFS | 75 | Uncoated | -1000 | 5 | |
| L-PC1010300075 | PDF > | UVFS | 75 | Uncoated | -300 | 5 | |
| L-PC1010250075 | PDF > | UVFS | 75 | Uncoated | -250 | 5 | |
| L-PC1010200075 | PDF > | UVFS | 75 | Uncoated | -200 | 5 | |
| L-PC1010150075 | PDF > | UVFS | 75 | Uncoated | -150 | 5 | |
| L-PC101030050Z | PDF > | UVFS | 50.8 | Uncoated | -300 | 5 | |
| L-PC101025050Z | PDF > | UVFS | 50.8 | Uncoated | -250 | 5 | |
| L-PC101020050Z | PDF > | UVFS | 50.8 | Uncoated | -200 | 5 | |
| L-PC101015050Z | PDF > | UVFS | 50.8 | Uncoated | -150 | 5 | |
| L-PC1010300050 | PDF > | UVFS | 50 | Uncoated | -300 | 5 | |
| L-PC1010250050 | PDF > | UVFS | 50 | Uncoated | -250 | 5 | |
| L-PC1010200050 | PDF > | UVFS | 50 | Uncoated | -200 | 5 | |
| L-PC1010150050 | PDF > | UVFS | 50 | Uncoated | -150 | 5 | |
| L-PC101100076Z | PDF > | UVFS | 76.2 | Uncoated | -1000 | 5 | |
| L-PC101030076Z | PDF > | UVFS | 76.2 | Uncoated | -300 | 5 | |
| L-PC101025076Z | PDF > | UVFS | 76.2 | Uncoated | -250 | 5 | |
| L-PC101020076Z | PDF > | UVFS | 76.2 | Uncoated | -200 | 5 | |
| L-PC101015076Z | PDF > | UVFS | 76.2 | Uncoated | -150 | 5 |
Now Shopping by
Related Categories
CLZ Optics Co., Ltd. offers a diverse range of plano-concave lenses to meet your specific needs. Our product catalog includes:
Uncoated Plano-Concave Lens: These lenses have undergone optical processing and are suitable for various basic optical experiments and applications. We can provide plano-concave lenses with either uncoated or specific coating options according to customer requirements, to meet higher-end and more complex application needs.
Coated Plano-Concave Lenses:
l Single-layer magnesium fluoride coated plano-concave lens for visible light (400-700nm)
l Broadband anti-reflection (BBAR) coated plano-concave lens for 420-680nm
l Broadband anti-reflection (BBAR) coated plano-concave lens for 400-950nm (VIS-NIR-1)
l Broadband anti-reflection (BBAR) coated plano-concave lens for 630-1100nm (NIR-1)
l Broadband anti-reflection (BBAR) coated plano-concave lens for 1050-1700nm (VIS-NIR-2)
Customization and Coating Services
In addition to the standard product catalog, CLZ Optics Co., Ltd. also provides customized plano-concave lenses and coating services to meet your specific requirements. Our expert team will work closely with you to ensure you obtain lenses that meet the performance specifications, coating requirements, and other critical parameters.
Applications of Plano-Concave Lenses
Plano-concave lenses, featuring one plane surface and one concave surface, have a wide range of applications in various fields. Here are the detailed introductions to their applications:
1. Optical Imaging and Photography: In optical imaging systems, plano-concave lenses are used to correct beam shapes and eliminate aberrations, thereby improving imaging quality.
2. Laser Technology and Optical Instruments: In laser systems, plano-concave lenses are used to expand the size of laser beams, making them wider to meet specific application needs.
3. Military Observation and Security Monitoring: The diverging effect of plano-concave lenses can disperse light, helping observers see a wider field of view.
4. Machine Vision and Projection Systems: In machine vision, plano-concave lenses can be used as optical components for devices such as industrial camera lenses.
5. Scientific Research and Experiments: In experimental physics and optical research, plano-concave lenses are often used to manipulate and control the propagation of light beams.
6. Other Fields: Plano-concave lenses are also widely used in medical optical equipment, optical communication devices, and various precision optical instruments, playing an irreplaceable role.
CLZ Optics Co., Ltd. ensures that you have the lenses suitable for your application needs by providing uncoated and coated plano-concave lenses as well as customization services.By providing both uncoated and coated plano-concave lenses, as well as customization services, CLZ Optics Co., Ltd. ensures that you have the right lens for your application.
