Plano-Convex Lenses
◢Plano-Convex Lenses

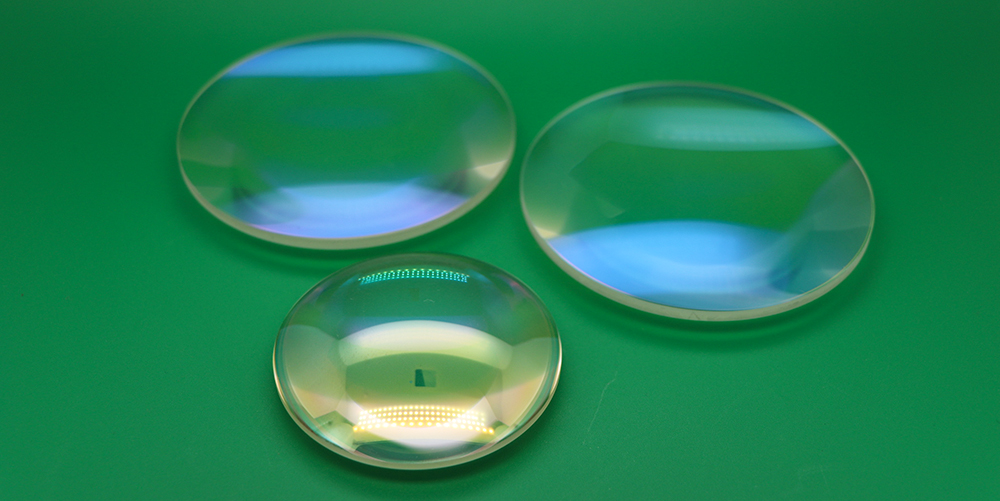

Plano convex lens is an optical component made of optical materials, with one side being flat and the other side being convex. Convex surfaces can be spherical or Aspherical. Due to the high production cost and high price of non spherical surfaces, Therefore, in most optical systems, optical designers will choose flat-convex lenses with spheres.
CLZ Optical Co.Ltd. provides catalog of optical componments for various applications, including plano convex lenses made of N-BK7 and fused silica. They are suitable for different types of optical systems. Flat convex lenses are generally suitable for optical systems with light collimation or monochromatic illumination, such as telescopes, microscopes, collimators, optical transceivers, magnifying glasses, condensing systems, and eyepieces. And it is suitable for high-end optical research projects such as industry, pharmaceuticals, and robotics.
In addition to the flat convex lenses in the catalog, CLZ Optical provides customized lenses according to the customer's drawings or specifications. Materials include optical glass, fused silica, fluoride, silicon, etc. Optical lenses of different materials are suitable for different optical system applications. We strictly control the production process of flat convex lenses and use advanced measuring equipment to ensure that the optical parameters of each customized lens meet the customer's technical specifications and design goals. If you need more relevant parameters and technical information, please contact us.
The application of plano convex lenses：
N-BK7 plano convex lens: suitable for optical systems ranging from visible light to mid infrared wavelengths, it is a very common optical glass material widely used in various optical systems, such as beam expander, imaging, and beam collimating device.
Flat convex lenses are not only optical components that converge light beams, but also have unique advantages in correcting optical aberrations, collimation, and other aspects. Although a single plano convex lens optical component can correct the spherical aberration of an optical system to a certain extent, in order to correct other aberrations such as coma, field curvature, distortion, etc. while correcting the spherical aberration, it is necessary to use a combination of plano convex lenses and other optical lens components. Therefore, a single plano convex lens plays an important role in optical system imaging and affects the clarity of the image in a certain content.
CLZ Optical Co., Ltd. provides a Catalog of Plano Convex lenses for various applications, as well as customized processing of flat convex lenses according to customer drawings or specifications. An optical system that can meet the different types of plano convex lenses requirement for customers. For optical systems that require high imaging clarity, we recommend using a combination of plano convex lenses and other optical lens components. Flat convex lenses are generally suitable for optical systems with light collimation or monochromatic illumination, such as telescopes, microscopes, collimators, optical transceivers, magnifying glasses and eyepieces. And it is suitable for high-end optical research projects such as industry, pharmaceuticals, robotics, and all.
In laser applications, plano convex lenses can focus laser beams onto extremely small points for high-precision machining or measurement. For example, in processes such as laser cutting and welding, plano convex lenses can focus laser beams to extremely small points, thereby achieving precise processing of materials. In addition, in laser surgery, plano convex lenses are also used to focus the laser beam for more precise treatment. In optical instruments such as microscopes, telescopes, and lasers, plano convex lenses are used to focus light or correct the optical system. In laser radar, a plano convex lens can be used as a receiving device for optical signals to converge and collect the reflected light emitted, there by chieving laser detection.
For more information, please contact us.
